Ptfe coated antistatic nomex felt filter bag

Ptfe coated antistatic nomex felt filter bag

  • Description
  • Inquiry
Product Description

ptfe coated antistatic nomex felt filter bag

1.The filter cloth is based on the thickness of the whole filter layer and belongs to deep filtration

2. the depth of the whole filter layer is formed from the fiber into a three-dimensional porous structure, from the inside and outside to the outside Dense, forming gradient filtering.

3. high pollution capacity, long filtration life, low pressure difference

4.Repeated cleaning, economic benefits

Application

1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations

2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals

3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers

4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics

5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster

6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.

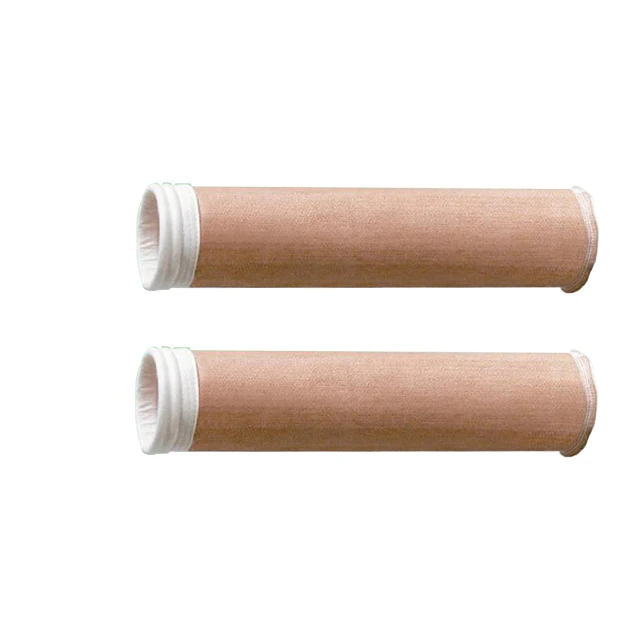

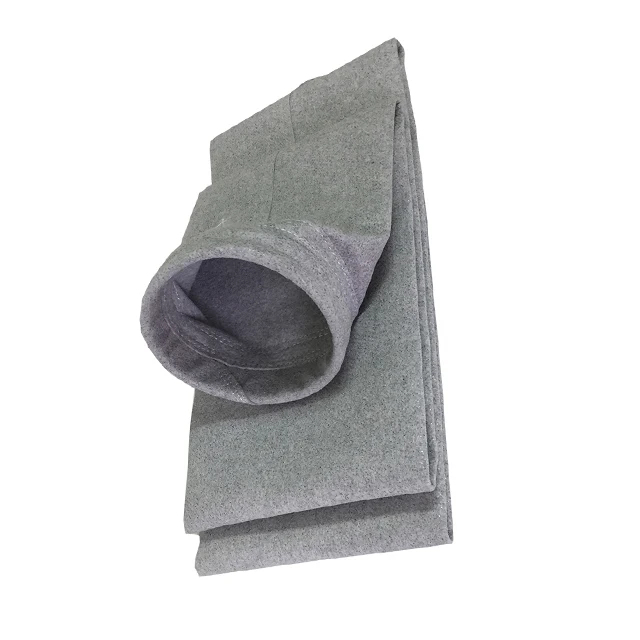

Detailed Images

ptfe coated antistatic nomex felt filter bag

Material
Nomex Aramid filter/ Nomex aramid scrim
Weight (g/m2)
450
500
550
Thickness (mm)
2.0
2.2
2.4
Air permenability
(m3/m2/min)
21
17
14
Tensile strength/ warp
> 800
> 800
> 800
Tensile strength/ weft
> 1100
> 1200
> 1300
Tensile elongation/ warp
< 35
< 35
< 35
Tensile elongation/ weft
< 55
< 55
< 55
Broke strength (Mpa/min)
2.55
2.40
2.35
Working temperature (℃)
≤ 204
≤ 204
≤ 204
Peak temperature (℃)
250
250
250
Anti Acidic
good
Anti alkaline
excellent
Anti alkaline
excellent
hydrolisis
good
Finishing treatment
heat setting, singeing, calendering, PTFE process

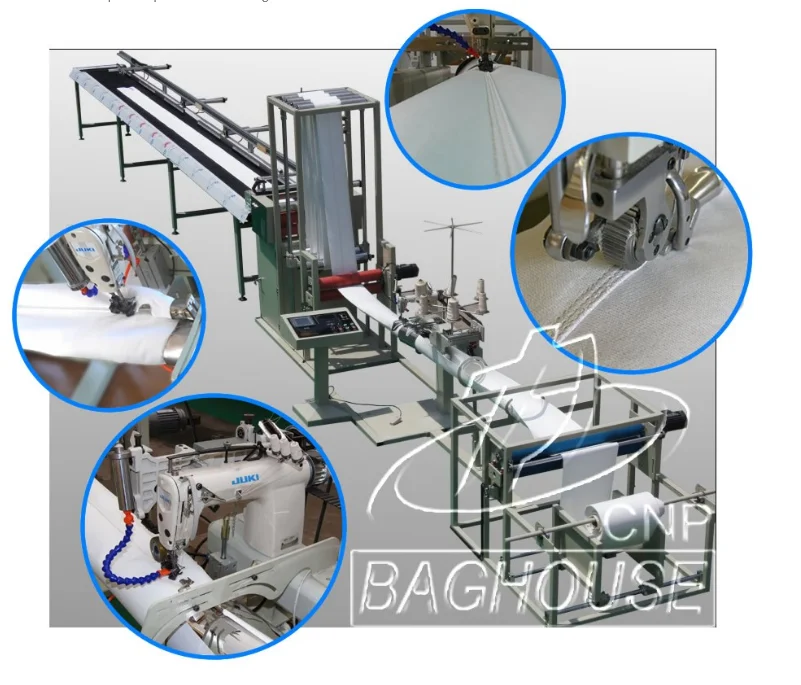

Factory & workshop

ptfe coated antistatic nomex felt filter bag

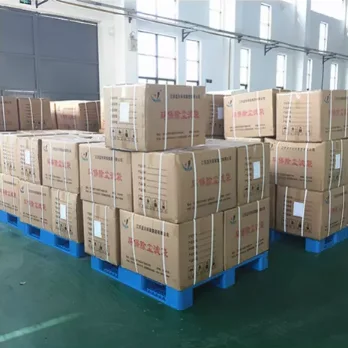

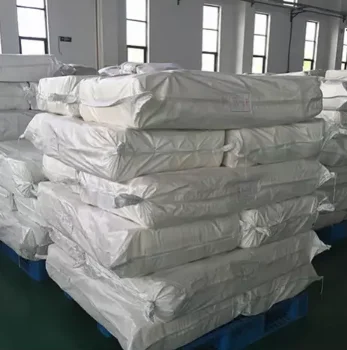

Packing & Delivery
