Product Description

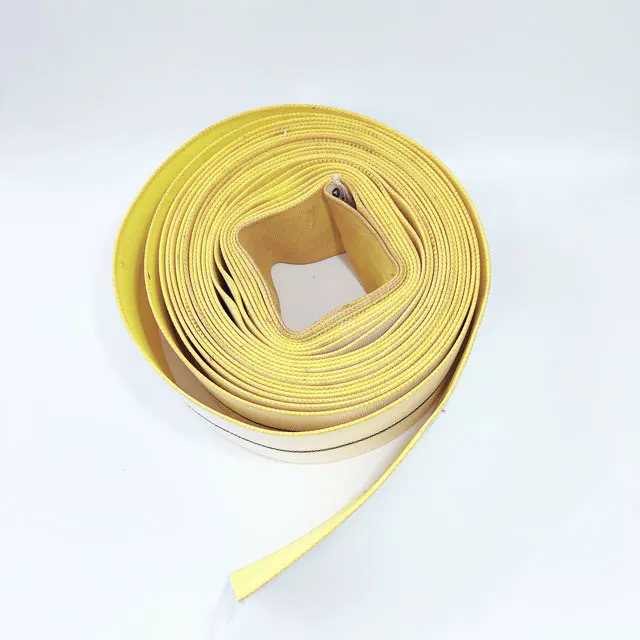

Polyester filament fabric airslide hose

Our airslide hose are usually used for bulk cement trailer discharging. It always woking on the bottom of the trailer. Through inflation by air compressor, it makes the bulk cement discharging from the trailer. Some people called Aeration hose. It is really very similar as Fire hose frame. But it’s much more strength and impact toughness than fire hose. One side of our hose is the PU coating. It is for block off the air flow.
Characteristics:
One side air permeable,the other side PU-coated.Good abrasion resistance and long service life all aynthetic,lightweight and flexible,easy to coil ageing and ozone resistant-weather resistant minimum maintenance.
cold resistant to -30°c
heat resistant to +160°c

Material:
Warp:100% polyester high tenacity fiber
Weft:100% polyester high tenacity filament
Specification
TYPE
Internal Diameter(mm)
Falt Width(mm)
Weight(g/m)
AH92
58
92
180
AH113
71
113
210
AH120
76
120
240
AH125
77
125
300
Air resistance
Pressure in0.2m3/m2/[email protected]
High
600–900mm
Low
200–500mm
Application
Aertion of bulk powders and granular in silos and silo wagons.

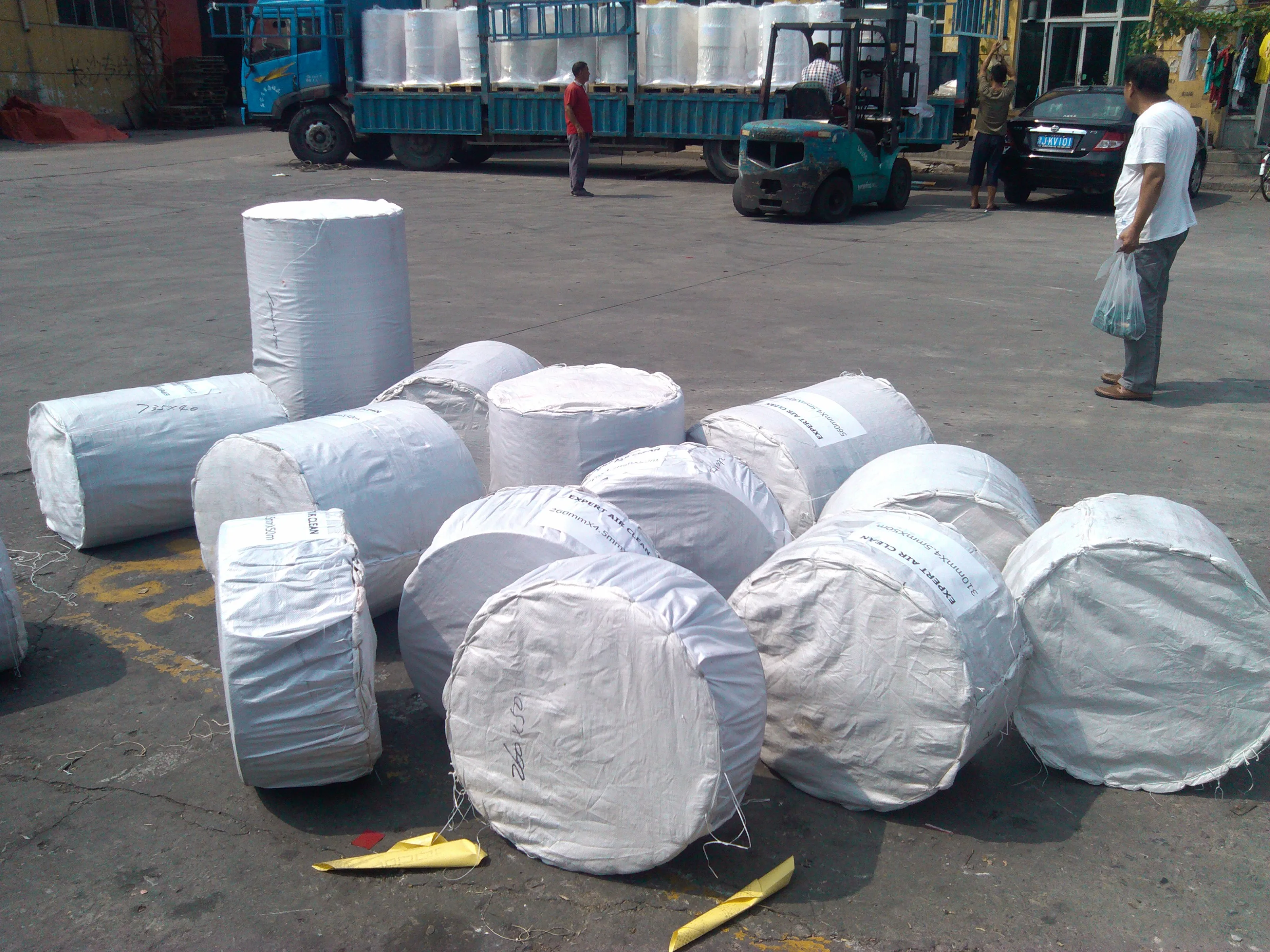

Paking&Delivery
